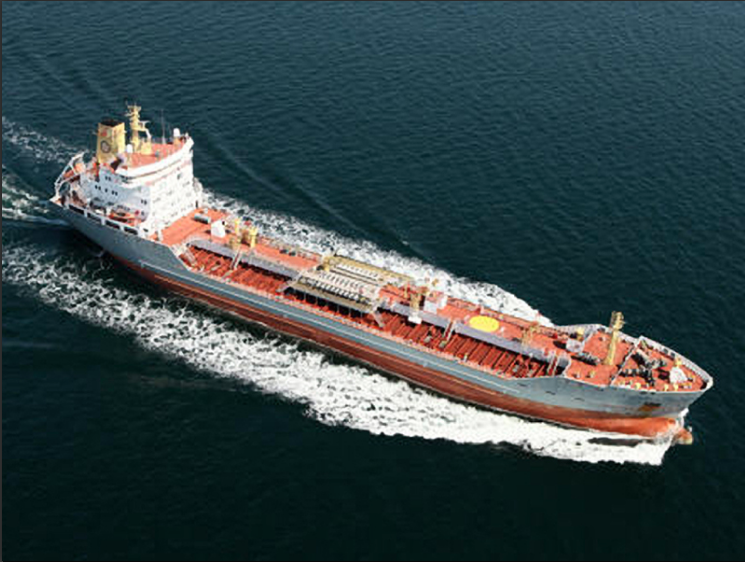

M/T Ek-Star

Built: 1999 by Jiangnan Shipyard at Shanghai, China
Flag: NIS

Signal letter: LAMT 5

Trading area: World wide

CLASS:
DnV + 1A1 ICE-1A Tanker for Oil ESP E0 TMON
Double Skin vessel.

DIMENSIONS:
Length over all:
Length between p.p
Breadth mld:
Depth upper deck:
Draft summer load:
Draft ballast Abt:
Gross tonnage:
Net tonnage:
Reduced Gross:

b
134,70 m
127,00 m
20,80 m
11,00 m
8,59 m
Fore 4.80m Aft 5.80m
8.829 ton
4.173 ton
7250 ton

CAPACITIES:
Deadweight,summer
Cargo, 98% volume:
Service slop tanks:
D.M.A tanks:
D.O. tanks:
Fresh water tanks:
W.B. tanks:

b
13.683 MT
14262 m³
170 m³
517 m³
103 m³
110 m³
5400 m³

CARGO EQUIPMENT:12 cargo tanks and 2 slop tanks, with
one deepwell pump (hydraulicdriven) in each tank.
Cargo/slop tanks epoxy coated.
Cargo handling 6-8 grades simultaneously segregated by two valves.

Cargo pumps:
Service slop tank pumps:
Cargo discharge capacity:
Ballast pumps:
Heating:
Tank washing:
Manifolder flanges:
Vapour return flanges:
Deck crane:

12 x 330 m³/h at 110 mlc
2 x 120 m³/h at 110 mlc
abt. 1.980 m³/h at 110 mlc
2×500 m³/h at 20 mlc
Stianless steel coils in all tanks.
(2×12/1×2) Fixed machines
8pcs connection each side 2×12” and 6×10”.
1 x 8″ each side.
5 tonnes/18 m

MACHINERY:
Main engine, MCR:
Bowthruster,azimuth:

b
1 x 5.300 kW
580 kW
