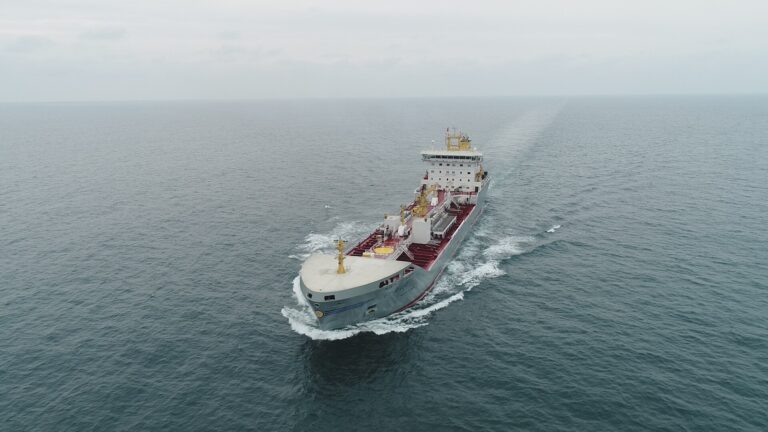

M/T EK-RIVER

Built: Aug 2018 bY Chengxi Shipyard Co Ltd Jiangyin China.
Flag: NIS

Signal letter: LAEK8

Trading area: World wide

CLASS:
DnV 1A1 Tanker for chemicals and oil AP(l, 25%) BIS BWM(T) Clean E0
ESP ETC HL(l.54) Ice(lA) Inert NAUT(OC) Recyclable TMON(oil lubricated) VCS(2)
Double skin vesse

DIMENSIONS:
Length over all:
Length between p.p
Extreme breadth:
Moulded depth:
Loadline – Summer:
Draft ballast:
Gross tonnage
Net tonnage

b
154,00 m
150,10 m
23,75 m
13,10 m
9.75 m
6,50 m
14.256 ton
6.468 ton

CAPACITIES:
Deadweight,summer
Deadweight, winter:
Cargo, 98% volume:
Service slop tanks:
H.F.O Tanks, 98%:
D.O. tanks:

b
19.884 MT
19.226 MT
22.020,4 m³
334.9 m³
540,90 m³
163,80 m³

CARGO EQUIPMENT:
12 cargo tanks and 2 slop tanks, with one deepwell pump
(electrical driven) in each tank.

Coating: INTERLINE 9001

Cargo pumps:
Service slop tank pumps:
Cargo discharge capacity:
Ballast pumps:
Heating:
Tank washing:
Manifolder flanges:
Vapour return flanges:
Deck crane:

12 x 330 m³/h at 110 mlc
2 x 100 m³/h at 110 mlc
1.980 m³/h at 110 mlc
2×500 m³/h at 20 mlc
Stianless steel coils in all tanks.
Fixed and portable machines.
6 x 12″ P/S
2 x 12″ each side.
10 tonnes

MACHINERY:
Main engine, MCR:

b
1 x 5.500 kW
